Albe Berndes EM 300 R malleable cast iron version A 45/46 mm round 12/12

Albe Berndes EM 300 R malleable cast iron version A 45/46 mm round 12/12

Albe Berndes EM 300 R malleable cast iron version A 45/46 mm round 12/12

Albe Berndes EM 300 R malleable cast iron version A 45/46 mm round 12/12

SKU: 05645
Category: Ball couplings up to 3000 kg
Manufacturers: ALBE Berndes

EM 300 R version A

£ 38,82

incl. 0% VAT , plus

Delivery time: 1 - 5 Workdays Other countries

Description
Question about item

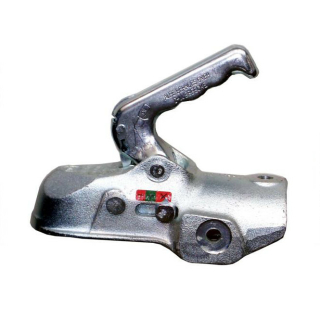

Albe Berndes EM 300 R malleable cast iron version A 45/46 mm round 12/12

ALBE Berndes ball coupling, malleable cast iron version for braked trailers up to 3000 kg permissible axle load up to 150 kg permissible support load at the coupling point

D- / Dc-value 26.9kN, EG approval 00-0377e1

for draw tube diameter 45/46 mm
fastening hole spacing 40 mm cross screw connection
for fastening screws M12

Replaces EM 270-D and EM 140-D / 1

Version A

PDF

Bedienungsanleitung

Hier können Sie die Anleitung für die Bedienung und Wartung der ALBE Berndes-Zugkugelkupplungen herunterladen.

PDF

Bedienungsanleitung

Shipping weight:	2,20 kg
