200 x 50, RA: 100 x 4, reinforced bearing
Brake axle Euro Plus 2051 ETI No.: 811135
Brake axle Euro Plus 2051 ETI- No.: 811135

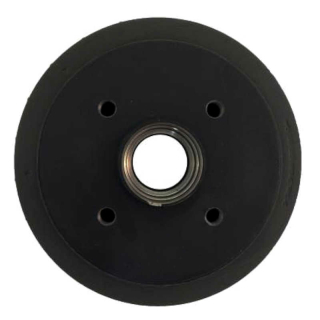

Large compact bearing inner diameter Ø 39 mm, outer diameter Ø 72 mmCast number on the brake drum is: 581063 Brake drum inner diameter Ø: 200 mm, width of the Brake shoes: 50 mm, wheel connection: 4 x 100 thread: M12 x 1.5 Dimensions of the wheel bearing: outside 72 mm / inside 39 mm / depth 37 mm
The following spare parts fit Art.-No.: 1224803 Wheel bearing, the wheel bearing set consists of: 1 x compact wheel bearing Ø 72/39/37 mm 1 x retaining ring 1 x flange nut, self-locking, 280 Nm
